AFD2D-3L Black Three Wheel Mobility Scooter Black

AFD2D-3L Black Three Wheel Mobility Scooter Black

$1,748.00
Brands
Product Code: AFD2D-3L Black
Stock In Stock
Viewed 6164 times

Product Description

FREE SHIPPING FROM US WAREHOUSE

ZVGREEN JX1D Electric 4-Wheel Mobility Scooter

▶ Click to Play Video

Budget-friendly - Good Quality Guarantee!

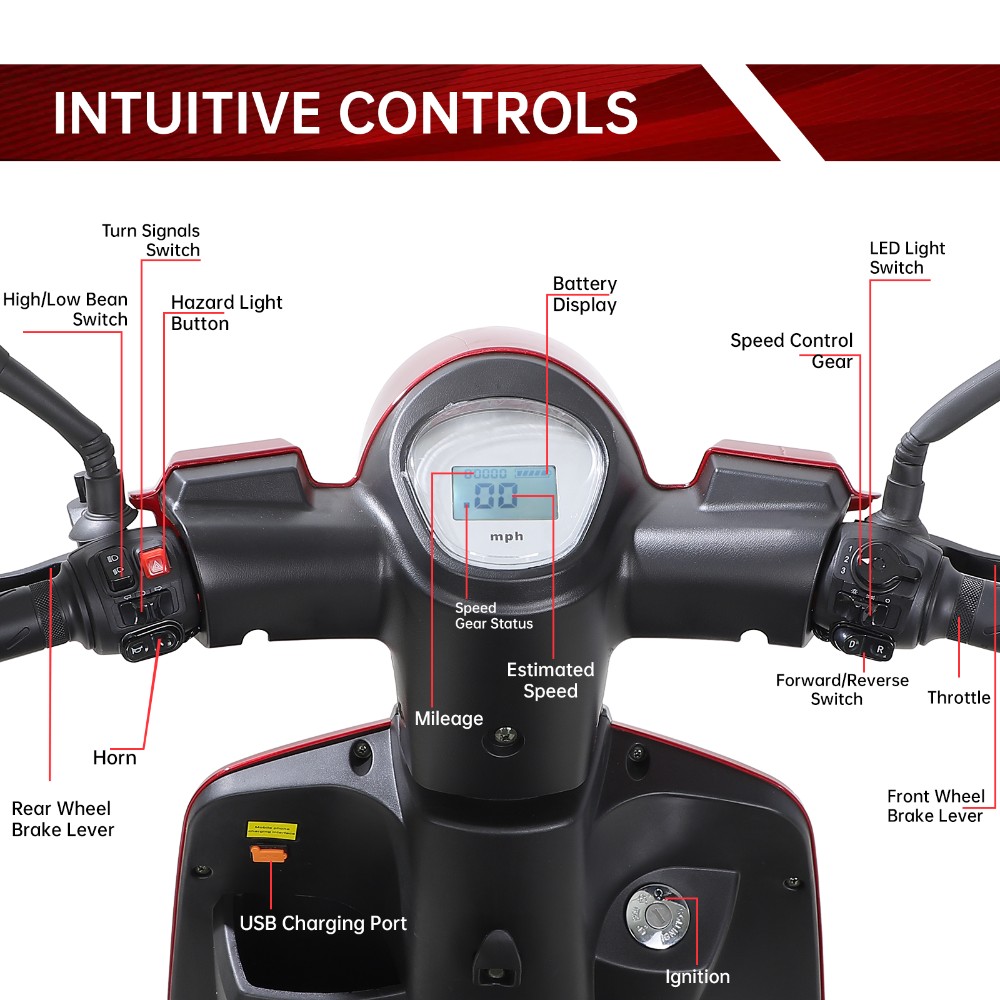

POWERFUL DESIGN - Drive up to 15mph for up to 25-31 miles on a single charge. 800W Differential motor. 60V 20Ah lead-acid battery. An easy to read LED console shows estimated speed, mileage, and battery display for easy navigation.

RIDE COMFORTABLY - This easy-to-drive electric mobility scooter. It can help the elderly travel more easily and conveniently is equipped with 3.00-10 Tubeless Tire can be easily driven on grass, roads, parks and beaches.

Product Image 1Product Image 1Product Image 1Product Image 1Product Image 1Product Image 1
Product Image 2Product Image 2Product Image 2Product Image 2Product Image 2Product Image 2
Product Image 3Product Image 3Product Image 3Product Image 3Product Image 3Product Image 3
Product Image 4Product Image 4Product Image 4Product Image 4Product Image 4Product Image 4
Product Image 5Product Image 5Product Image 5Product Image 5Product Image 5Product Image 5
Product Image 6Product Image 6Product Image 6Product Image 6Product Image 6Product Image 6
Product Image 7Product Image 7Product Image 7Product Image 7Product Image 7Product Image 7
Product Image 8Product Image 8Product Image 8Product Image 8Product Image 8Product Image 8

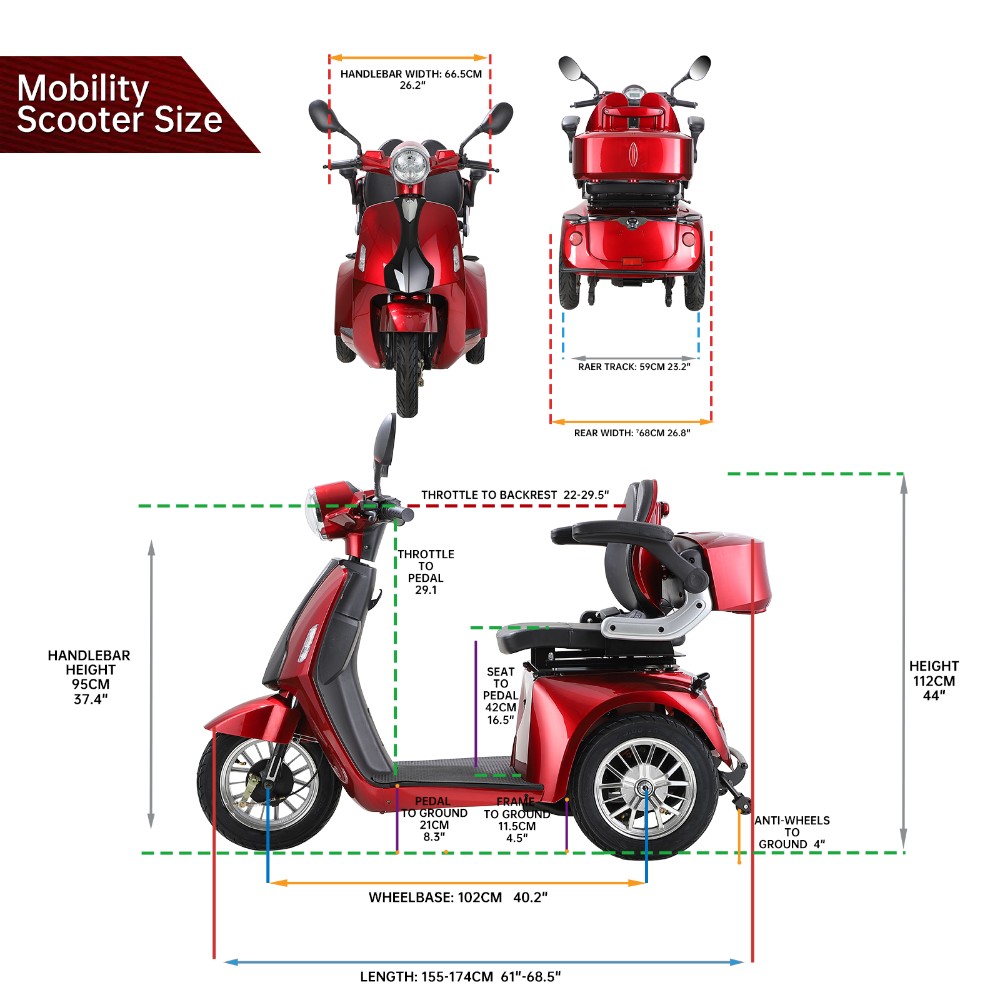

Specifications

ModelJXY4D
BrandZVGREEN
ColorRed, Blue, Black
Motor60V 800W
Max Speed15mph (25km/h)
Drive Range31-36 miles per charge (50-60km)
Weight Capacity330lbs (150kg)
Climbing Ability20°
Batteries60 Volt, 20 AH Lead-Acid
BrakesFront & Rear Drum Brake
Brake Distance≤ 16.4 ft (5m)
Charger60 Volt Smart Charger
Charging Time8-10 Hours
SuspensionFront Hydraulic Shock Absorption, Rear Double Shock Springs

Wheel HubAluminum
Tire Type3.00-10 Tubeless Tire
Tire Pressure32-40 PSI
Tire Diameter16" (40cm)
Tire Width3"  (7.6cm)
Throttle TypeRight Twist Throttle
Speed ControlThree Speed Settings: 4/8/15mph max speed limited
Seat TypeRegular Seat
Seat Dimensions20.5" Depth x 17" Width x 15.8" Height
Seat Adjustment Forth & Back movement, Armrest Adjustment
Seat BeltYES

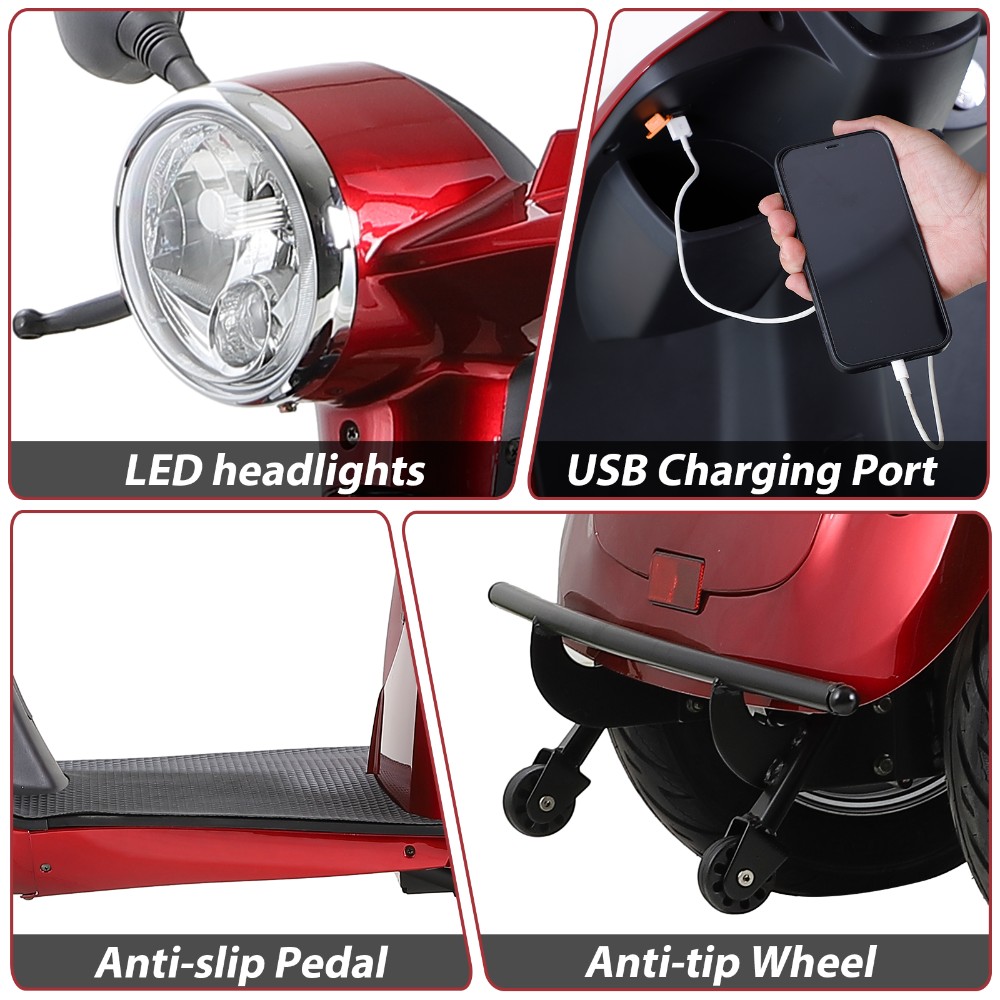

Lighting SystemLED Headlight, Front & Rear Turn Signals, Brake Light, Rear Reflector
BumperRear Bumper
Anti-tip WheelsRear Anti-tip Wheels
USB Phone ChargingYES
FOB Key StartYES
Alarm System YES
Ground Clearance 5" (12cm)
Footrest Pedal Size111111111
Wheelbase40.2" (102cm)
Front Wheel TrackFront Independent Suspension
Rear Wheel Track8-10 Hours
Min. Turing Radius45" (115cm)
Assembled Dimensions8-10 Hours
Scooter WeightFront Independent Suspension
Packing Size 8-10 Hours
Packing WeightFront Independent Suspension

Regarding shipping

We will ship the scooter within 2-3 business days after payment is received, from the warehouse closest to your location. The scooter is shipped fully assembled and securely packed in an iron frame. Once you receive the package, all you need to do is unpack it and make a few simple adjustments, and it will be ready to ride. Delivery typically takes 7-10 days, and the logistics company will contact you by phone to schedule a delivery time.

Regarding warranty

We offer a one-year after-sales warranty. If any parts are damaged, we will send replacement parts to you. We provide three technical support options: 1) video assistance for parts replacement, 2) phone support from our US-based after-sales team, 3) we can arrange for a technician to visit your location for repairs. Additionally, after the first year, we offer replacement parts at a discounted price, and our professional after-sales team will continue to provide technical support.

How to Assemble

▶ Click to Play Video

PACKING STATUS

Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9Product Image 9
Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10Product Image 10

Frequently Asked Questions

Q: Can I test drive the product at an offline store?
A: Sorry, we are an online store. Products will be shipped from the warehouse closest to you. Currently, our after-sales service center in Wilmington, DE, offers test drives.
Q: I purchased a ZVGREEN brand mobility scooter from another platform. Can I get help from zvgreenpower if I encounter issues with the mobility scooter?
A: Yes, regardless of whether you bought it from Amazon, eBay, Walmart, or another website, we will provide assistance whenever you need it.
You need to offter us your register record from your purchase platform. Or register again on zvgreenpower to get after sale service.
Q: How to register the scooter?
A: If you purchased the product from zvgreenpower.com, we will automatically activate the after-sales service. The warranty period will be calculated starting from the activation date. You can contact us to handle after-sales matters by providing any of the following: order number, name used for the purchase, or purchase email address.
If you purchased the product from other platforms, please provide your purchase record (including the purchase date, purchaser's name, and contact phone number) as well as the VIN, and we will process your after-sales registration.
Q: What's the warranty includes?
A: The limited warranty as contained here in is exclusive and in lieu of all other warranties expressed or implied. There are no warranties that extend beyond the description in this limited warranty.
Lifetime: scooter frame
12 Monthsincluding charger, motor, controller, converter, twist throttle, display, horn, head light, turn signals, reflectors, LED running light, control switches, gear box,  charging port etc
6 Months: Lead-acid Battery.
This limited warranty does not cover normal wear and tear items/parts. (tires, brake pads, cables, the loss the key etc) It does not cover the product issues due to misuse, neglect, or accident. Nor any damage, failure, or loss caused by improper assembly, set up, storage, maintenance, or improper servicing.
For any request regarding warranty, spare parts or replacement devices do not hesitate to contact us by e-mail jxy@zvgreen.com .
Q: Can a windshield and canopy be installed on a mobility scooter without a canopy?
A: Sorry, the canopy is customized during production. We currently offer canopy installations for the AFDDP and BULL models. For other models, a custom order is required.
Q: Can I request personalized customization?
A: Of course! Share your specific needs with us, and we can integrate any desired features. We will coordinate directly with our manufacturing partners to source the product. Note that customization requires 2-3 months for shipping. We recommend placing custom orders during winter to enjoy your unique mobility scooter by spring.
Q: Do you support Medicare?
A: Sorry, our products(mobility scooter)cannot support Medicare. Please contact us, and we’ll offer you the best price.
Q: Where are your warehouses located?
A: Our warehouses are currently in
  • California: CA
  • Texas: TX
  • Georgia: GA
  • Delaware: DE
  • Colorado: CO
Q: How can I get the user manual?
A: You can find and download it on our website. If unavailable, email us, and we'll provide a PDF version.
Q: Is the mobility scooter fully assembled upon delivery? What shipping method is used?
A: Yes, our mobility scooters arrive almost fully assembled. Upon delivery, simply unbox the scooter, attach the rearview mirror and roof (if included), connect the circuit breaker, start the scooter with the key, and you're ready to ride!
This product is shipped via LTL (Less Than Truckload) freight, which means it will be transported from our warehouse to your doorstep by truck. Please ensure your phone is reachable, as the local delivery depot will contact you to schedule a delivery appointment.
Q: Can I return the product?
A: Yes. Within 30 days of delivery, you may return the product. If the return is due to quality issues, we cover the shipping costs. For non-quality-related returns, you will be responsible for shipping fees.
